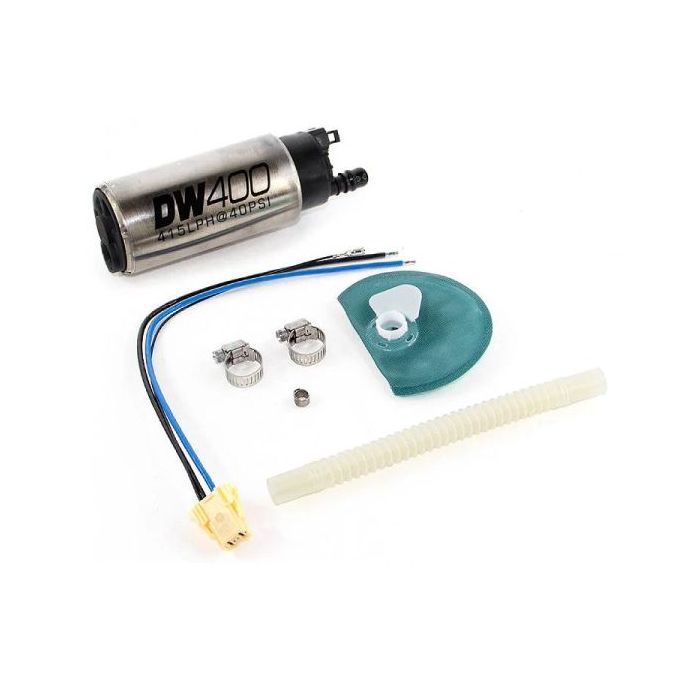

2003-2013 C6 Corvette LS2/LS3/LS7 (Inc Z06) DW400 In-Tank Fuel Pump Kit, 415lph, Deatschwerks, 9-402-1048
The DW400 is the highest flowing in-tank fuel pump on the market. Quiet operation and pulse width modulation compatibility are delivered via the turbine impeller and computer balanced armature. E85 compatibility is built in via the carbon commutators and a fully encapsulated armature. All DW fuel pumps are backed by a 3-yr no fault warranty.
• Manufactured in Germany through Bosch
• 500LPH open flow, 415LPH at 40psi
• Outflows Walbro 450 'e85' by 31% (70-100 psi)
• Rated to 120psi total fuel pressure
• Carbon commutator for e85 compatibility
Specifications:
Weight: 19.4oz (550 grams)
External Materials: Electroplated Steel
Inlet Fitting: 14mm ID, 18.1mm OD
Outlet Fitting: 3/8' Hose Clamp
PRV Activation: 120 psi
Impeller Design: Single Scroll Composite Turbine
Connector Terminal: Spade Pos/Neg
Min Voltage Input: 6 Volts
Max Voltage Input: 18 Volts
Current Draw 40psi: 16.5 amps (13.5v)
*DW400 now includes integrated check-valve
Notes:
*To ensure maximum voltage at the pump, a 10-gauge hardwire kit is strongly recommended for optimum performance (DeatschWerks part #FPHWK-10-HD)
**THIS PRODUCT MAY BE USED SOLELY ON VEHICLES USED IN SANCTIONED COMPETITION, WHICH MAY NEVER BE USED UPON A PUBLIC ROAD OR HIGHWAY, UNLESS PERMITTED BY SPECIFIC REGULATORY EXEMPTION
